Littelfuse Triac, MAC15M/N Series

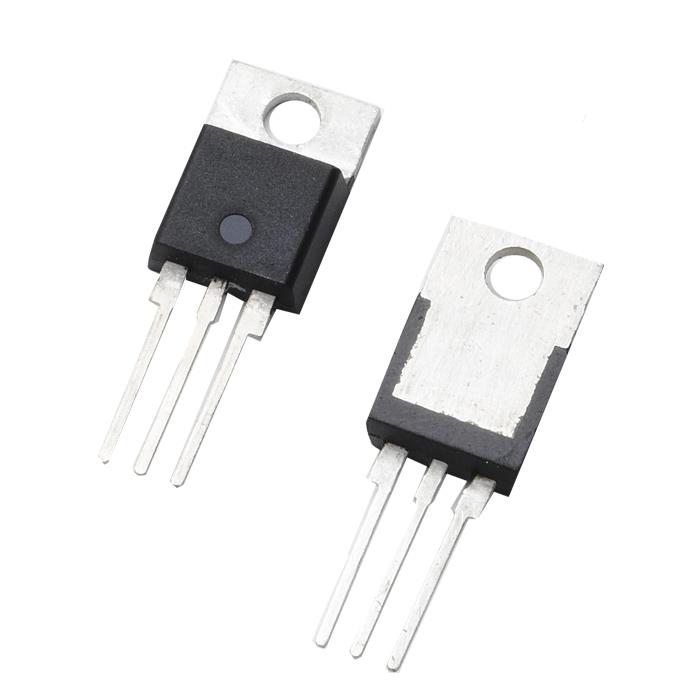

Images are representations only.

MAC15M/N Series Triac

Brand: Littelfuse, Inc.

This triac is designed for high performance full-wave ac control applications where high noise immunity and commutating di/dt are required.


Features:

  • Blocking Voltage to 800 Volts
  • On-State Current Rating of 15 Amperes RMS at 80°C
  • Uniform Gate Trigger Currents in Three Modes
  • High Immunity to dv/dt - 250 V/µs minimum at 125°C
  • Minimizes Snubber Networks for Protection
  • Industry Standard TO-220AB Package
  • High Commutating di/dt - 9.0 A/ms minimum at 125°C
  • Operational in Three Quadrants, Q1, Q2, and Q3
  • Device Marking: Logo, Device Type, e.g., MAC15M, Date Code
  • Pb-Free Packages are Available
Features:
  • Blocking Voltage to 800 Volts
  • On-State Current Rating of 15 Amperes RMS at 80°C
  • Uniform Gate Trigger Currents in Three Modes
  • High Immunity to dv/dt - 250 V/µs minimum at 125°C
  • Minimizes Snubber Networks for Protection
  • Industry Standard TO-220AB Package
  • High Commutating di/dt - 9.0 A/ms minimum at 125°C
  • Operational in Three Quadrants, Q1, Q2, and Q3
  • Device Marking: Logo, Device Type, e.g., MAC15M, Date Code
  • Pb-Free Packages are Available
