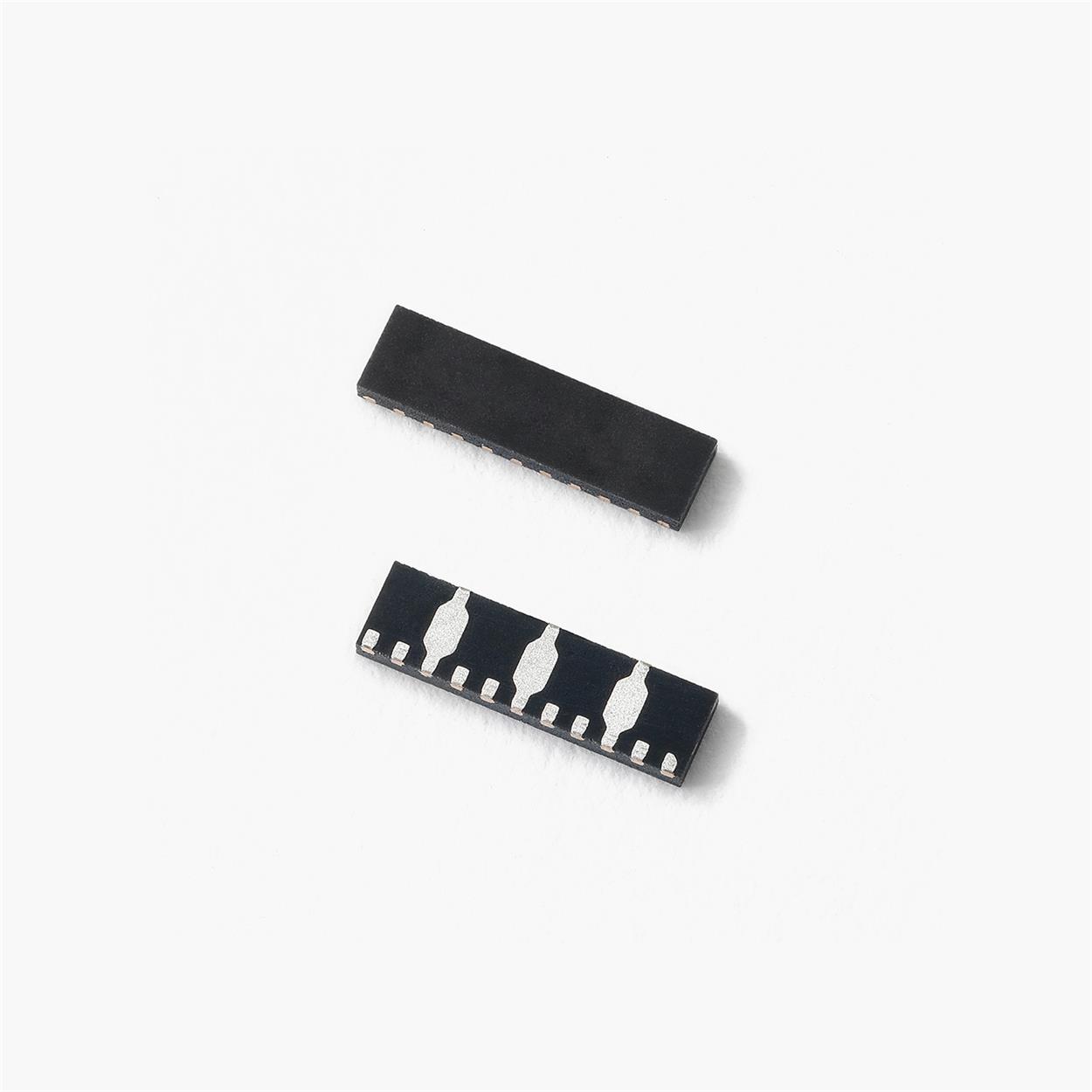

SP8008 Series Low Capacitance ESD Protection
Brand: Littelfuse, Inc.The SP8008 integrates eight channels of ultra low capacitance common mode protection for electronic equipment exposed to electrostatic
discharges (ESD). This robust component can effectively protect against ESD events exceeding the IEC 61000-4-2 contact ESD level of ±8 kV without any performance
degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as V-by-One, Embedded DisplayPort, HDMI 1.0 through 2.1
and USB 2.0/3.0/3.1.
Features
- ESD, IEC 61000-4-2, +30kV/-23kV contact, +30kV/-23kV air
- EFT, IEC 61000-4-4, 40A (tP=5/50ns)
- Lightning, IEC 61000-4-5 2nd edition, 4A (tP=8/20μs)
- Low capacitance of 0.3pF@0V, 3GHz (TYP) per I/O
- Low leakage current of 0.5μA (MAX) at 5V
- Small form factor μDFN packages (JEDEC MO-229) saves board space and supports straight through routing of the data lines.
- Halogen free, Lead free and RoHS compliant
Applications:
- LCD/PDP TVs
- LCD/LED Monitors
- Notebook Computers
- Ultrabooks
- Automotive Displays
- Flat Panel Displays
- Digital Signage
- HD Cameras/Projectors
- USB and HDMI interfaces
