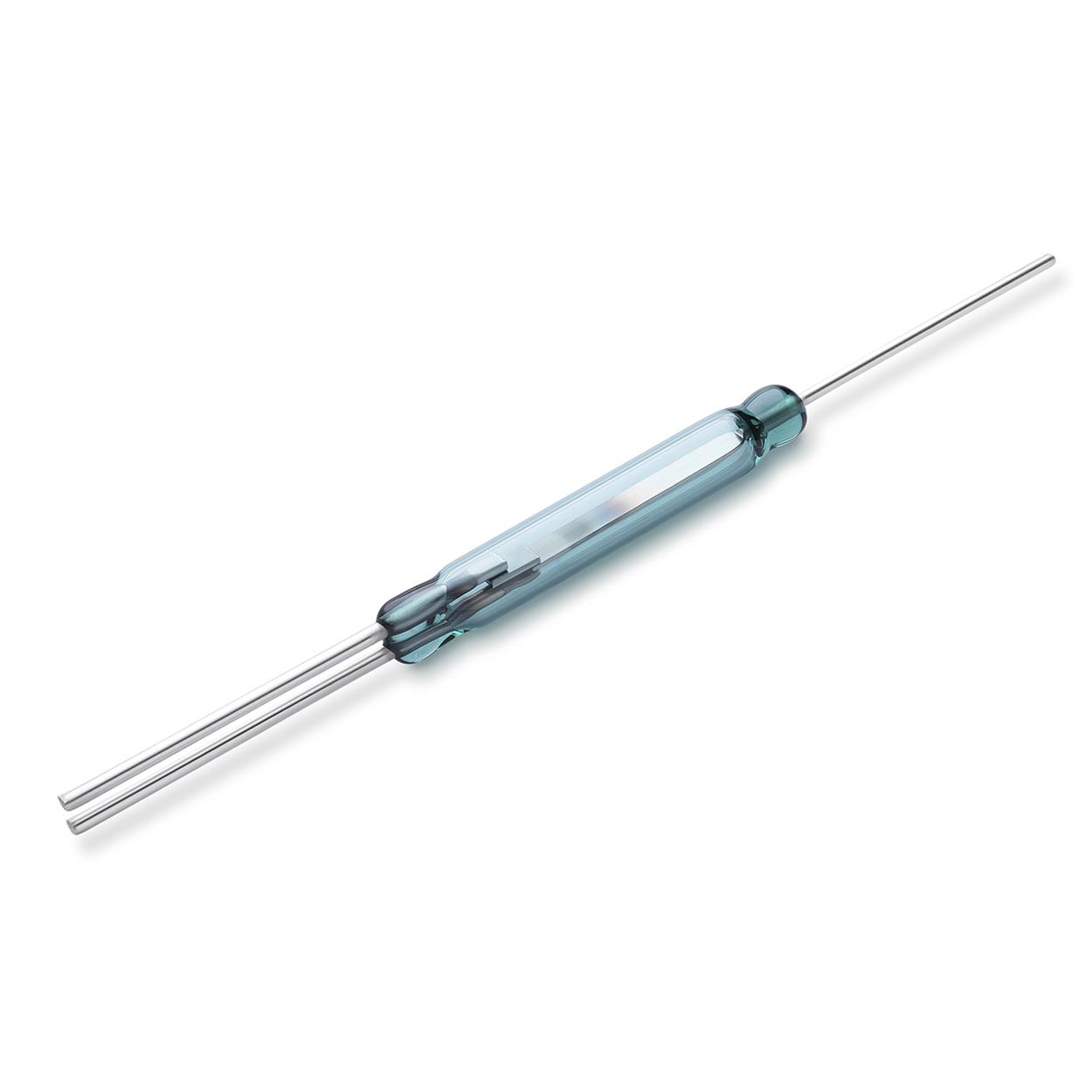

Littelfuse 39.7 mm Standard Changeover Reed Switch, DRS-DTH Series
Images are representations only.

DRS-DTH Series 39.7 mm Standard Changeover Reed Switch

Brand: Littelfuse, Inc.

The DRS-DTH Reed Switch is a large changeover switch with a 39.70mm long x 5.33mm diameter (1.562" x 0.210") glass envelope, capable of high voltage and power switching up to 500Vdc at 2mA or 0.5A at 30W/VA. The DRS-DTH has an insulation resistance of 10^9 ohms minimum and contact resistance less than 125 milli-ohms.


Features:

  • Changeover switch
  • Capable of switching 500Vdc or 0.5A at up to 30W
  • Minimum breakdown voltage 1200Vdc
  • Available sensitivity range 50-80 AT

Applications:

  • Industrial Safety Applications
  • Security
  • Limit switching
  • White Goods Applications
Features:
  • Changeover switch
  • Capable of switching 500Vdc or 0.5A at up to 30W
  • Minimum breakdown voltage 1200Vdc
  • Available sensitivity range 50-80 AT
