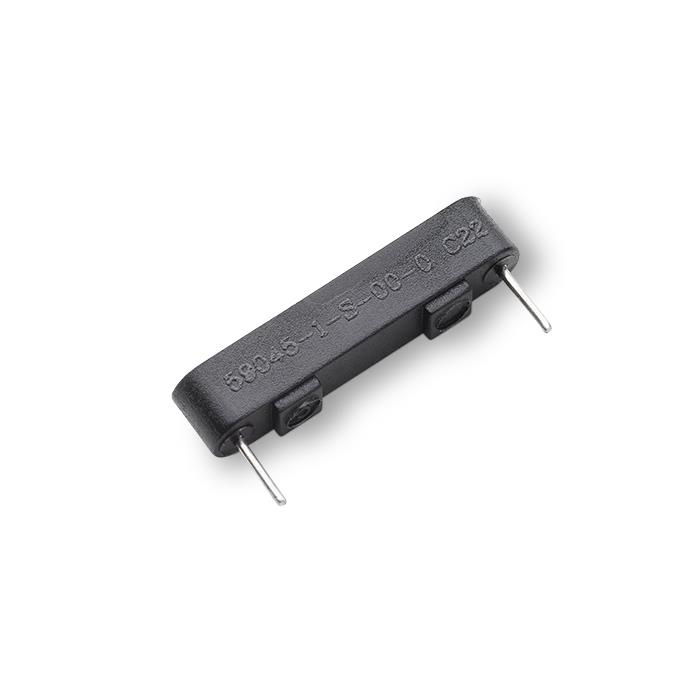

Littelfuse Miniature PCB Mountable Reed Switch, 59045
Images are representations only.

59045 Miniature PCB Mountable Reed Switch

Brand: Littelfuse, Inc.

A miniature, PCB mount reed switch 17.78mm x 4.32mm x 3.30mm (0.700" x 0.170" x 0.130") with a normally open contact. Contains molded stand-offs to allow board washing. Available with customer-defined sensitivity. Capable of switching up to 200Vdc at 10W. Available with a range of sensitivity options. Well suited for position and limit sensing, security, door and window alarm systems. Functions best with the 57045 actuator.

Note: The 57045 actuator is sold separately.


Features:

  • Molded stand-offs to allow board washing
  • Hermetically sealed contacts
  • Customer-defined sensitivity

Benefits:

  • Suitable for mounting directly onto printed circuit boards
  • Well suited for usage in high-moisture and contaminated environments
  • Excellent for switching micro-controller logic level loads

Applications:

  • Position and limit switching
  • Security
Features:
  • Molded stand-offs to allow board washing.
  • Hermetically sealed contacts.
  • Customer-defined sensitivity. Benefits:
  • Suitable for mounting directly onto printed circuit boards.
  • Well suited for usage in high-moisture and contaminated environments.
  • Excellent for switching micro-controller logic level loads.
