Universal Contact

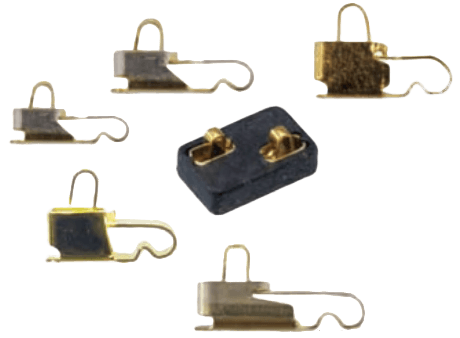

Brand: ITT CannonUniversal Contact is an independent SMT contact which provides an electrical connection between a device and a PCB. The contact is manufactured as a single piece stamped product, incorporating pre-load and anti-lift features. The Universal Contact has been designed to replace traditional interfaces where the contact is custom designed into the component. It can be used to connect a number of device components in any direction and configuration using the same interface.
Features- Range of heights available:
- 1.3 mm contact with the minimum pitch of 1.35 mm
- 1.8 mm contact with the minimum pitch of 1.25 mm
- 2.5 mm contact the minimum pitch is 1.35 mm
- 3.5 & 4.0 mm minimum pitch is 1.45 mm
- Solderwell that prevents solder wicking up the contact
- "Side wings" protect the active parts of the contact which prevent contact from overstressing and potential damage
- Domed contact point allows good hertz stress and low contact resistance
- The X-Y-Z movement allows robust connection between the contact and component assembly during shock and vibration
- Compliant with WEEE and RoHS directives
Specifications
Brand
Applications
- Automotive
- Handset
- Industrial Applications
- Medical
Approvals & Certifications
- RoHS
- WEEE
Electrical Rating
- Maximum
Humidity
- Operable in 90% Relative Humidity [Temp 40° C (104° F)]
Materials of Construction
- Base: Beryllium Copper
- Plating: Nickel
- Selective Aluminum in Contact Area 1 Minute over Aluminum Stripe
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Resistance
- Contact Resistance: Maximum
Shock
- In Accordance with IEC 68-2-27, 30 G
Vibration
- In Accordance with IEC 68-2-36
