Littelfuse Miniature Overmolded Reed Switch, 59165 Series
Images are representations only.

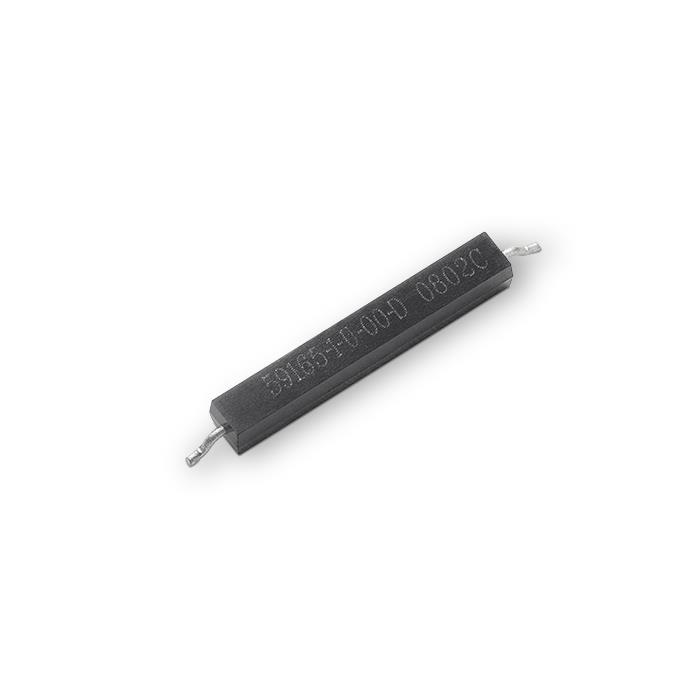

59165 Series Miniature Overmolded Reed Switch

Brand: Littelfuse, Inc.

A miniature overmolded reed sensor 16.00mm x 2.41mm x 2.41mm (0.630" x 0.095" x 0.095") with straight, staple-form, or gull-wing leads. Provided with normally open contacts. Capable of switching up to 200Vdc at 10W. Its package contains molded stand-offs to allow board washing. Available with a range of sensitivity options, including customer-defined sensitivity. Well suited for position and limit sensing, security, and door/window alarm systems. Functions best with the 57045 actuator.

Note: The 57045 actuator is sold separately.



Features:

  • Two-part, magnetically-operated proximity sensor
  • Gull-wing, straight, or staple-form lead options
  • Molded stand-off to allow board washing
  • Customer-defined sensitivity
  • Suitable for reflow soldering

Benefits:

  • Well suited for usage in high-moisture and contaminated environments
  • Reed contacts last for millions of operating cycles under micro-controller voltage and current logic-level loads
  • Suitable for pick-and-place assembly

Applications:

  • Position and limit switching
  • Security
  • Door switch
Features:
  • Two-part, magnetically-operated proximity sensor.
  • Gull-wing, straight, or staple-form lead options.
  • Molded stand-off to allow board washing.
  • Customer-defined sensitivity.
  • Suitable for reflow soldering. Benefits:
  • Well suited for usage in high-moisture and contaminated environments.
  • Reed contacts last for millions of operating cycles under micro-controller voltage and current logic-level loads.
  • Suitable for pick-and-place assembly.
