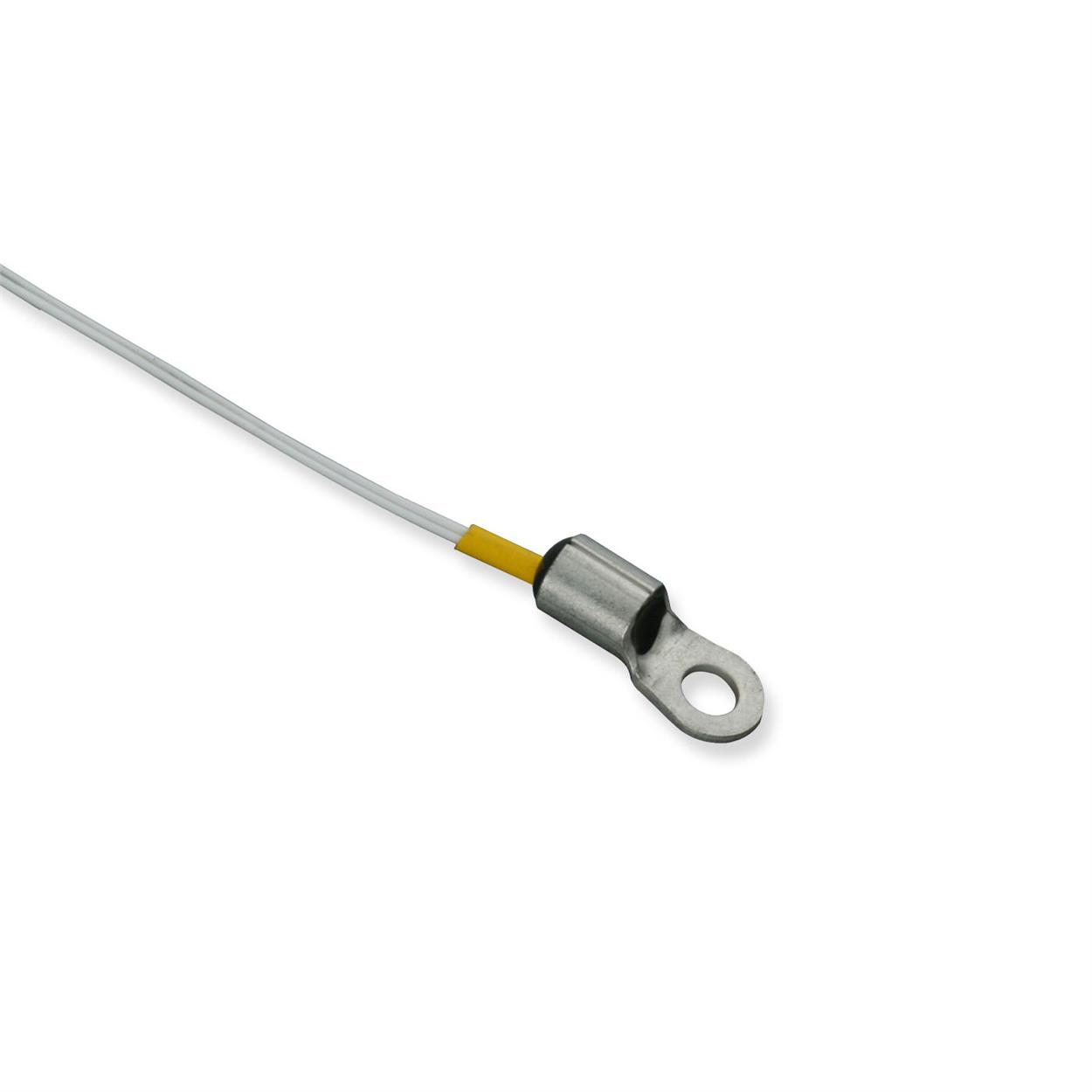

USUR1000 Series Thermistor Probe & Assembly
Brand: Littelfuse, Inc.Littelfuse UL Recognized ring lug thermistor probe assemblies are manufacturing using super stable NTC chips which are potted into a ring lug housing with thermally conductive epoxy. Designed for rapid thermal response and excellent long-term stability, these devices can be used in a wide range of surface temperature sensing applications.
Features:
- Insulated lead wire rated for 300V minimum
- User selectable lead length
- Ring tongue mounting hole diameter = 0.145" nominal
- Ring tongue mounting hole stud size = #6
Specifications:
- Resistance temperature curve = "J"
- Resistance tolerances from ±2% to ±10% available
- Temperature rating = -40°C to +125°C
- UL File Number E232830 (UL Category XGPU2)
