Littelfuse Industrial High Energy Terninal Varistor, HF34 Series
Images are representations only.

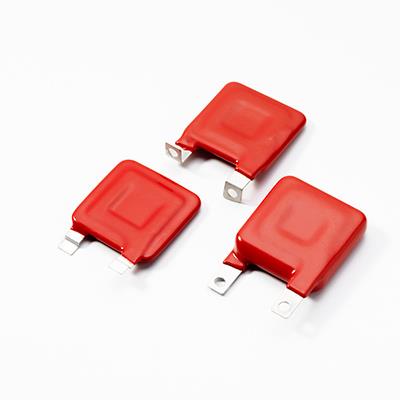

HF34 Series Industrial High Energy Terninal Varistor

Brand: Littelfuse, Inc.

The HB34, HF34, and HG34 Series of transient surge

suppressors are industrial high-energy Metal-Oxide

Varistors (MOVs). They are designed to provide surge

suppression in the AC mains outdoor and service entrance

environment (distribution panels) of buildings. Applications

also include industrial heavy motors, controls, and power

supplies such as used in the oil-drilling, mining, and

transportation fields, including HVAC and motor/generator





Features:

  • Lead-Free, HalogenFree and RoHS Compliant available
  • Wide operating voltage range VM(AC)RMS 110V to 750V
  • High energy absorption capability WTM = 220J to 1050J
  • High peak pulse current capability ITM = 40,000A
  • Rigid terminals for secure through-hole solder mounting
  • No derating up to 85ºC ambient
Features:
  • Lead-Free, HalogenFree and RoHS Compliant available
  • Wide operating voltage range VM(AC)RMS 110V to 750V
  • High energy absorption capability WTM = 220J to 1050J
  • High peak pulse current capability ITM = 40,000A
  • Rigid terminals for secure through-hole solder mounting
  • No derating up to 85ºC ambient
