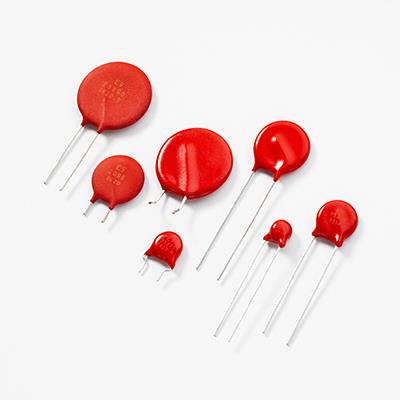

TX Hi-Rel Series High Reliability Varistor
Brand: Littelfuse, Inc.The high reliability Liettelfuse varistor is the latest step in increased product performance, and is available for applications requiring quality and reliability assurance levels consistent with military or other standards. (MIL-STD-19500, MIL-S-750, Method 202.) Additionally, Littelfuse varistors are inherently radiation hardened compared to silicon diode suppressors as illustrated in Figure 1.
This series of high-reliability varistors involve four categories:
- DSSC Qualified Parts List (QPL) MIL-R-83530 4 Types Presently Available
- DSSC Standard Military Drawings Based on MIL-R 83530 63 Types Presently Available:
- ZA Series- Drawing # 87063
- DB Series- Drawing # 90065
- ZA Series- Drawing # 87063
- Littelfuse High Reliability Series Offers TX Equivalents 29 Types Presently Available
- Custom Types Processed to Customer-Specific Requirements –(SCD) or to Standard Military Flow
Documentation
Data Sheets
Document
- Circuit Protection Technology Application Matrix pdf 246 KB
- LITTELFUSE ICPTest ZA Series 09 11 2012 pdf 5.4 MB
- LITTELFUSE ICPTest ZA Series 1 9 2014 pdf 4.6 MB
- LITTELFUSE ICPTest ZA Series 2 28 2013 pdf 3.7 MB
- LITTELFUSE ICPTest ZA Series 8 19 2013 pdf 3.8 MB
- LITTELFUSE ICPTest ZA Series with new wire 1 23 2013 pdf 4.7 MB
- Product Selection Guide pdf 9.4 MB
- ZA Series pdf 325 KB
