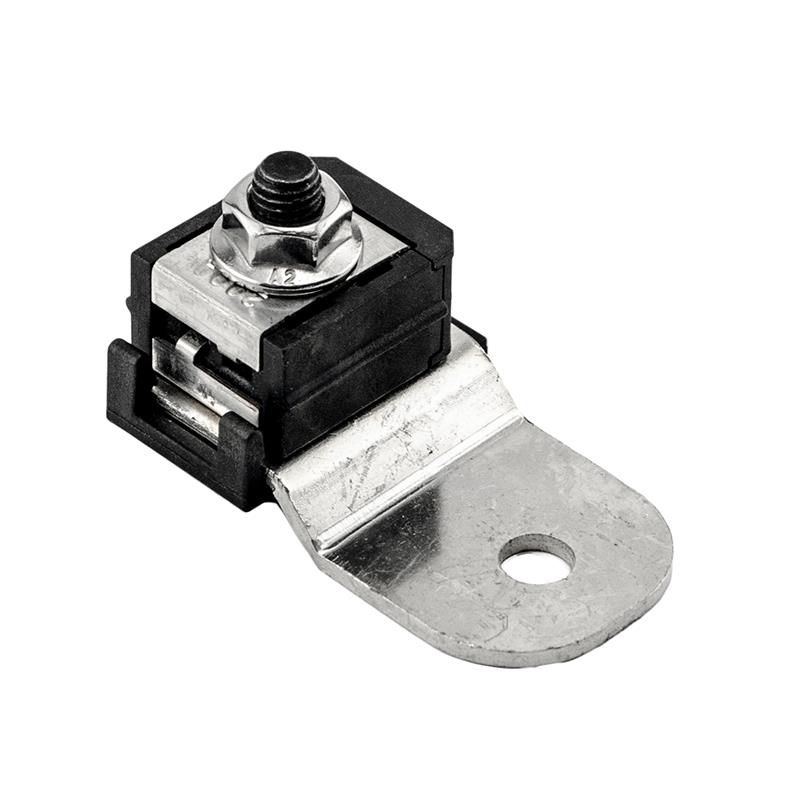

ZCASE-SMZ Series Stud Mount ZCASE Fuse Holder

The SMZ stud mount fuse holder allows you to mount fusing directly to a M8 or M10 on applications such as batteries, alternators, battery switches or electrical relays. The SMZ series accepts the Littelfuse proprietary ZCASE® fuse that is available in 40-600A ratings with similar characteristics to the MEGA® fuse. The SMZ stud mount fuse holder is ideal for stacking to create a 2 and 3 circuit version (see image above) and is secured to a stud using a standard M8 or M10 nut (sold separately). The insulated bolt on the busbar eliminates the traditional need for nylon nuts used on legacy CF8 fuses. The ZCASE fuses can be assembled using a standard M8 flange nut included with each part number.

The SMZ stud mount fuse holder features a compact design which saves space and eliminates the need to wire in a separate fuse holder or power distribution module. Additional circuits are added to the battery circuit directly on top of the ZCASE fuse with wired ring terminals. The fuse holder is available in 4 configurations, each with a red protective cover designed to reduce the risk of accidently contact on the fuse or battery terminal.

Part Number

 Mounting Hole Size

Cover Style

901-525 Fuse/Stud Cover

901-524 Fuse Cover

0FHZ0201Z

M8 (8.5mm)

•

0FHZ0202Z

M8 (8.5mm)

•

0FHZ0211Z

 M10 (10.5mm)

•

0FHZ0212Z

M10 (10.5mm)



•
