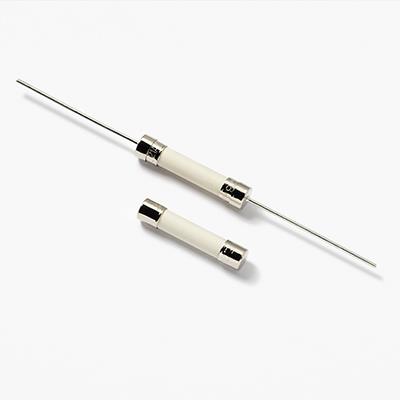

328 Series Axial Lead and Cartridge Fuse
Images are representations only.

328 Series Axial Lead & Cartridge Fuse

Brand: Littelfuse, Inc.

The 328 Series is a 300VAC rated, 10kA surge withstand, 6.3×32mm ceramic fuse, designed in accordance to UL248-14 Standard, provided in cartridge and axial-lead packages.




Features:


  • High surge withstand capability

    – 20 hits of 10kA 8/20μs surge

    – Meets ANSI/IEEE C62.41.2, Category C-High

    – Meets US Dept of Energy (DOE) MSSLC/ CBEA street lighting and parking lot lighting, elevated level
  • Small form factor (6.3×32mm) with cartridge and axial-lead package options
  • Breaking capacity: 200A@300VAC, 200A@100VDC
  • Lead-free, RoHS compliant, halogen-free
  • Compliant with UL248- 14 and NFPA 70 (NEC) primary fusing requirements
  • Operating temperature: –55°C to 125°C

Applications:


  • Commercial and outdoor LED luminaries
  • Outdoor electronics and electrical equipment
  • Surge protection for telecom application
Features:
  • High surge withstand capability. – 20 hits of 10kA 8/20μs surge. – Meets ANSI/IEEE C62.41.2, Category C-High. – Meets US Dept of Energy (DOE) MSSLC/ CBEA street lighting and parking lot lighting, elevated level.
  • Small form factor (6.3×32 mm) with cartridge and axial-lead package options.
  • Breaking capacity: 200A@300Vac, 200A@100Vdc.
  • Lead-free, RoHS compliant, halogen-free.
  • Compliant with UL248- 14 and NFPA 70 (NEC) primary fusing requirements.
  • Operating temperature: –55°C to 125°C.
