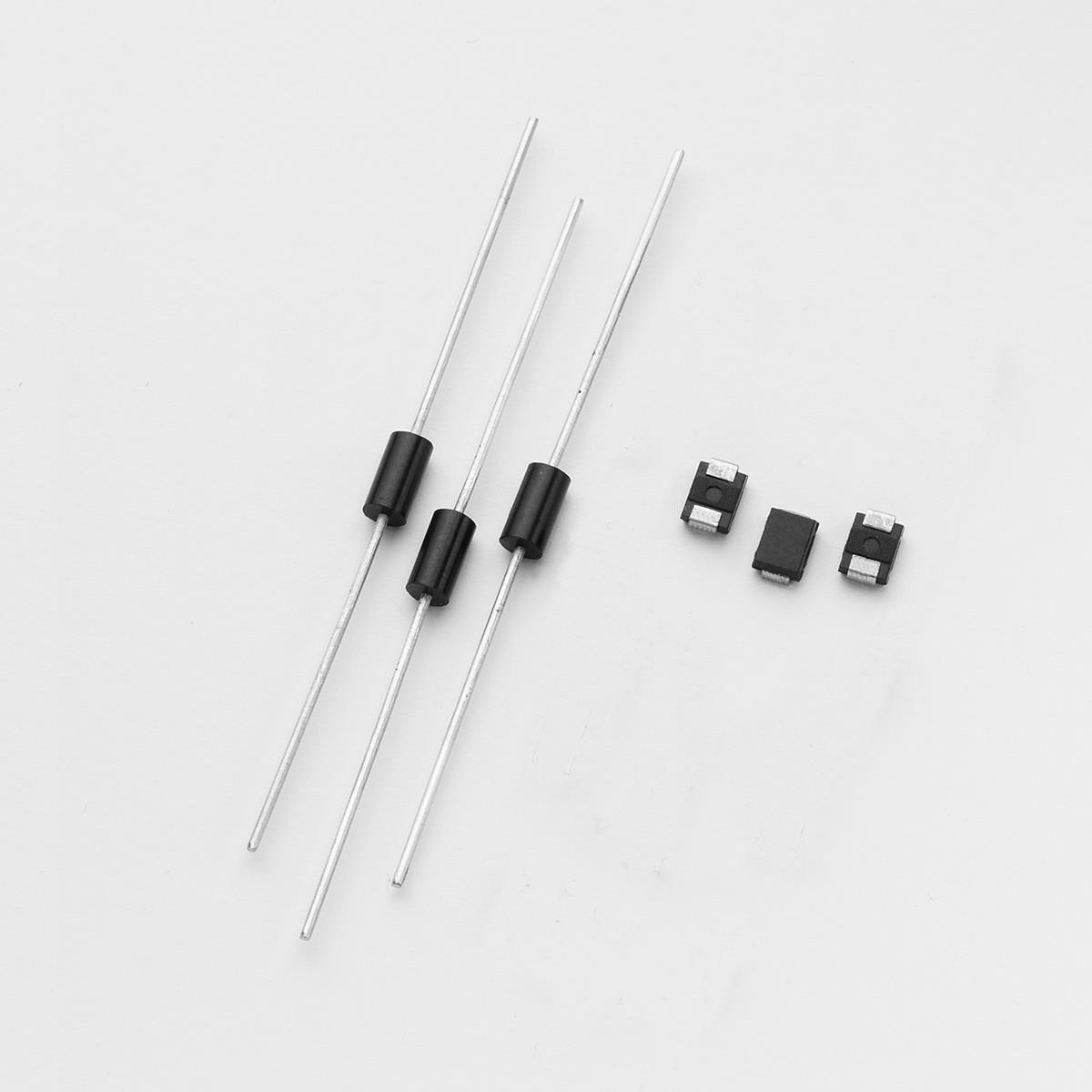

Images are representations only.
K2xx0yHU Series High Energy Unidirectional SIDAC
Brand: Littelfuse, Inc.The new K2xx0yHU is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 leaded package. Voltage activation of this solid state switch is accomplished with peak voltage level of 210 to 230Volts. The SIDAC is a silicon bilateral voltage triggered Thyristor switch that switches on through a negative resistance region to a low on-state voltage. Conduction will continue until current is interrupted or lowered below minimum holding current of the device.
Features:
- AC Circuit Oriented
- Triggering Voltage of 210 to 230V
- 280A Pulse Current Capability
- RoHS Compliant
- Unidirectional
Applications:
- Suitable for high voltage power supplies, natural gas igniters, and Xenon flash ignition
