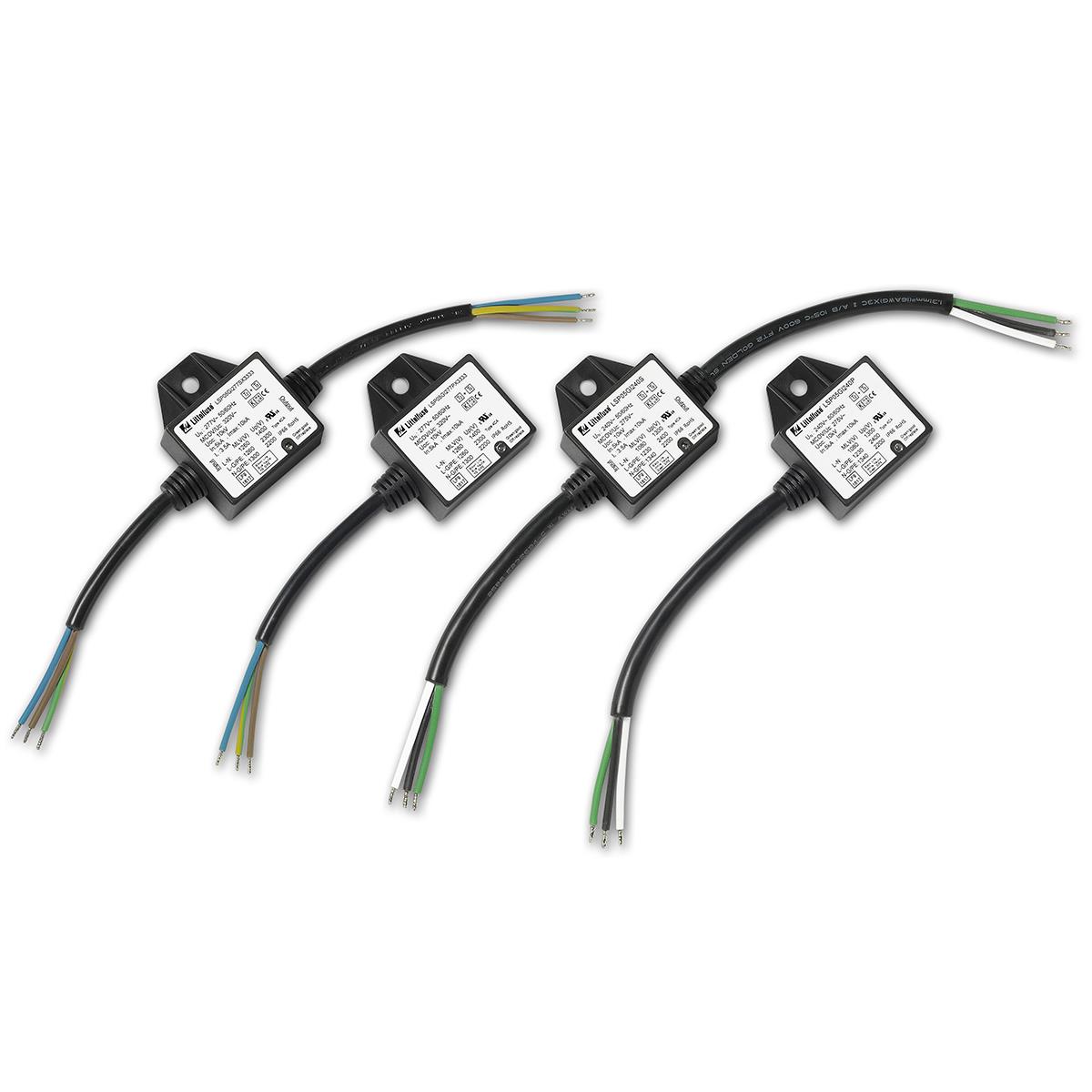

LSP05GI Series Thermally Protected Surge Protective Device
Brand: Littelfuse, Inc.LSP05GI Series LED Lighting Surge Protection Modules are designed for use in outdoor and commercial LED lighting fixtures for transient overvoltage protection. Their 10kV/5kA surge handling capability will enhance the LED lighting fixture’s surge immunity and extend its operating lifetime.
LSP05GI Series modules are constructed with Littelfuse thermally protected varistor technology. A built-in thermal disconnect function provides additional protection to prevent catastrophic failure and fire hazard, even under the extreme circumstances of varistor end-of-life or sustained overvoltage conditions.
These modules have UL 1449 4th Edition Type 4 Recognition and are IEC 61643-11 Test Class II and EN 61643-11 Type 2 certified. They meet US DOE's MSSLC Model Specification, ANSI C136.2-2015 and ANSI C82.77-5.
The LSP05GI Series features a built-in LED indicator that notifies the lighting technician when a module requires replacement. It is available with either series connections or parallel connections with operating voltages ranging from 120V to 480V.
Features:
- IEC 61643-11/EN61643-11 approved
- Double-insulated cable wire
- Built-in LED indicator
- UL 1449 approved
- Thermally protected varistor technology
- Parallel-connected and series-connected options
- 10kA Maximum Discharge Current (Imax), 8/20µs
- Meets ANSI C82.77-5-2015: Location C Medium, 10kV/5kA, 1.2/50µs-8/20µs Combination Wave
- Meets ANSI C136.2-2015: Enhanced Level, 10kV/5kA, 1.2/50µs-8/20us Combination Wave
- Meets IEEE C62.41.2: Location Category C Low, 6kV/3kA, 1.2/50us-8/20µs Combination Wave
- Meets US Dept. of Energy MSSSLC Model Spec.
- High line-to-earth/ground resistance
- IP66 rated
Applications:
- Outdoor and commercial LED lighting
- Roadway lighting
- Traffic lighting
- Digital signage
- Service entrance lighting
- Parking garage/lot lighting
- Flood lighting
- Tunnel lighting
- Street lighting
